Bede D1 HR-XRD

Location

NSYSU International Building B1 (IR1001)

Model

Bede D1 HR-XRD (High-resolution X-ray)

Analyzable: Thin film, powders, bulk materials (sample thickness should not exceed 4mm; mainly Thin films)

Functions:

1. Thin film grazing incident x-ray diffraction
2. X-ray reflectivity
3. Rocking curve for epitaxial thin film
4. Reciprocal space mapping
5. Texture analysis (pole figure)
6. Grazing Incidence In-plane X-ray Diffraction

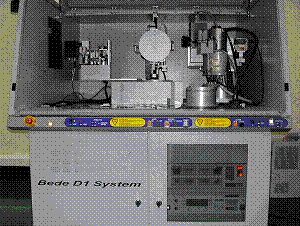

Four sections of the machine.

1. sealed-tube
2. sample stage
3. detector arm
4. Microsource(beam size:1mm*1mm)

The maximum power can reach 2.2 kW, typically operated at 2 kW (40 kV, 50 mA).

Charge

1. Please learn how to use the machine from certified users before scheduling a certification appointment with the instrument certifier. The training and certification fee is 2000 NTD.
   (You must possess the Radiation Protection Work Permit from the Radiological Safety Commission to be certified and operate the machine on your own. Training sessions are held once per semester. More information can be found at https://envisafe.nsysu.edu.tw/?Lang=zh-tw)
2. The hourly rate for machine usage is 300 NTD. Hours are recorded based on your account login, rounded to the nearest hour, and less than an hour is counted as one hour.
   (Once certified, you will be provided with an account and password.)
3. For commissioned operation, the hourly rate is 500 NTD.
4. The usage of simulation software is charged at 100 NTD/hour, also based on your account login record.
